| Ask Lasest Price | |
| Brand Name : | HC |
| Model Number : | CM |
| Price : | 30000usd |
| Delivery Time : | 18days |
| Payment Terms : | 50% deposit , 50 % before delivery |
| Supply Ability : | 30sets/month |
Item | Parameter | |
Repeat Position Accuracy | ±0.01mm(Test data and method are available) | |
Printing Accuracy | ±0.025mm(Test data and method are available) | |
Printing Speed / Cycle Time | <11s (Exclude Printing & Cleaning) | |
Products Changeover | <5Min | |
Screen Stencil Size/Min-Max | 650mm X650mm-900mm X900mm | |
Screen Stencil Size/Thickness | 20mm ~ 40mm | |
PCB Size/Min-Max/Thickness | 50X70mm-700X500mm/0.6~6mm | |
PCB Warpage Ratio | ＜1%(Based on diagonal length) | |
Bottom of Board Size | 13mm(Standard configuration), 25mm | |
Edge of Board Size | 3mm | |
Conveyor Height | 900±40mm | |
Conveyor Direction | Left-Right; Right-Left; Left-Left; Right-Right | |
Conveyor Speed | 100-1500mm/sec Programmable control | |
Board Positioning | Support System | Magnetic pin/Side support block/Flexible automatic pin(optional) |
Clamping System | Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting | |
Print head | Closed-loop pressure feedback, programmable pressure control | |
Squeegee Speed | 10~200mm/sec | |
Squeegee Pressure | 0-15kg software control(closed-loop pressure feedback), pressure value visible | |
Squeegee Angle | 60°(Standard )/55°/45° | |
Squeegee Type | Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized. | |
Steel Mesh Separation Speed | 0.01~10mm/sec Programmable Control | |
Cleaning Method | Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods) | |
Table Adjustment Range | X: ±8mm;Y:±10mm;θ:±2° | |
Type of Fiducial Point | Standard geometry shape of fiducial point, bonding pad / Stencil hole | |
Camera System | Single digital camera for upward/downward vision system | |
Air Pressure | 4~6Kg/cm2 | |
Air Consumption | Approx 0.07m3 /min | |
Control Method | PC Control | |
Power Supply | AC:220±10%,50/60HZ 1Φ 1.5KW | |

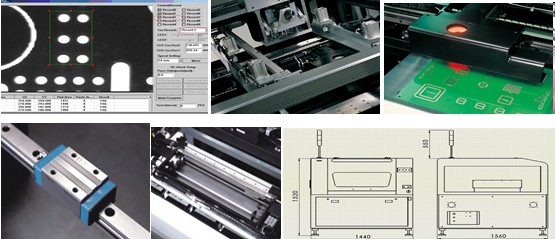

Machine Dimensions | 1560mm(L) x 1440mm(W) x 1520(H)mm(Exclude the height of lighthouse, please see Dimension of Product) | |
Weight | Approx:1100Kg | |
Operation Temperature | -20°C ~ +45°C | |
Operation Humidity | 30%~60% | |
|
|
